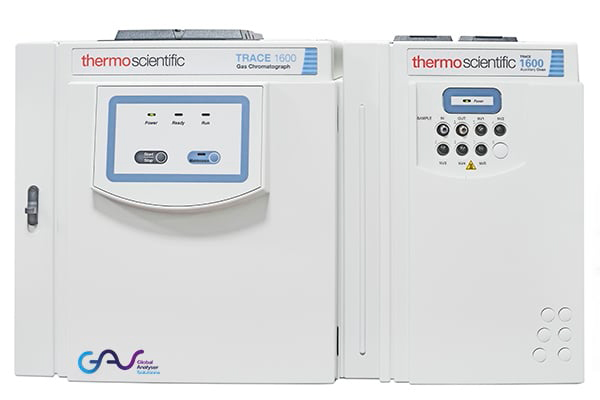

The GAS Refinery Gas Analyser (RGA) provides a comprehensive and reliable solution for refinery gas analysis across a wide range of process, fuel, recycle, and liquefied gas streams. Accurate refinery gas composition data is essential for process optimisation, fuel quality control, environmental compliance, and safe plant operation. Designed around proven gas chromatography technology, the analyser delivers fast and precise measurements of hydrogen, permanent gases, hydrocarbons, and optional sulphur compounds in demanding refinery environments.
The system utilizes three independent analytical channels dedicated to hydrogen, permanent gases, and hydrocarbon analysis, ensuring optimal separation performance and analytical accuracy. Micropacked columns mounted within a heated valve oven provide efficient isothermal operation with low carrier gas consumption, while capillary columns installed in a programmable oven enable rapid and detailed hydrocarbon analysis. Optional fourth-channel configurations can be added for ultra-low sulphur analysis, ppb-level permanent gas measurements, high-purity gas analysis, or enhanced hydrocarbon characterization.
The analyser incorporates Thermo GC1600 technology with dual InstantConnect Thermal Conductivity Detectors (TCDs), Flame Ionisation Detection (FID), and an external valve oven containing five valves, six packed columns, and two capillary columns. Sulfinert®-treated tubing throughout the sample path ensures accurate sulphur analysis and minimizes adsorption effects. Robust diaphragm valves and InstantConnect detector modules provide exceptional reliability, delivering greater than 99% uptime while minimizing maintenance requirements.
Integrated Chromeleon CDS software enables automated operation, advanced data processing, and comprehensive reporting. Optional vaporisers and liquid sampling valves allow accurate analysis of liquefied gases such as LPG, propane, and butane. With its modular architecture, fast analysis cycles, and extensive standards compliance, the GAS Refinery Gas Analyser is ideally suited for refinery laboratories, petrochemical facilities, and process monitoring applications.
Benefits
Fast Analysis Times: Complete refinery gas composition in approximately 5 minutes, or 7 minutes when sulphur analysis is included.
Three Independent Analytical Channels: Dedicated channels for hydrogen, permanent gases, and hydrocarbons provide optimal separation and analytical performance.
Expandable Modular Design: Optional fourth analytical channel supports sulphur analysis, ppb-level permanent gas measurements, heavier hydrocarbon analysis, and low-level CO/CO₂ detection.
Exceptional Reliability: Diaphragm valves, Sulfinert® tubing, and InstantConnect detector technology provide greater than 99% uptime.
Low Maintenance Requirements: Modular detector architecture simplifies servicing and reduces maintenance costs.
Broad Standards Compliance: Fully compliant with major ASTM, ISO, EN, DIN, IP, UOP, and GOST refinery gas analysis standards.
| Parameter | Specification |
|---|---|
| Analyser Type | Refinery Gas Analyser (RGA) |
| GC Platform | Thermo Scientific GC1600 |
| Detectors | Dual InstantConnect TCDs and FID |
| Analytical Channels | Three Standard Channels (Hydrogen, Permanent Gases, Hydrocarbons) |
| Optional Channel | FPD, PFPD, PDD, Additional FID or Methaniser-FID |
| Valve Configuration | 5 Valves in External Heated Valve Oven |
| Columns | 6 Packed Columns and 2 Capillary Columns |
| Sample Path Treatment | Sulfinert® Treated Tubing |
| Data System | Chromeleon Chromatography Data System (CDS) |
| Runtime | 7 Minutes |
| Minimum Detectability | < 0.01 % |
| Repeatability | < 1 % |
| Liquefied Gas Analysis | Optional Vaporiser or Liquid Sampling Valve |
| Instrument Uptime | > 99 % |
Refinery Fuel Gas Monitoring: Measure hydrogen, permanent gases, and hydrocarbon composition to maintain fuel gas quality, optimize combustion efficiency, and monitor calorific value.
Process and Recycle Gas Analysis: Analyse FCC overhead gases, recycle streams, desulphurisation units, and process gases to improve refinery performance and operational efficiency.
LPG, Propane and Butane Characterisation: Perform accurate compositional analysis of liquefied petroleum gases using dedicated liquid sampling and vaporisation systems.
Sulphur and Impurity Monitoring: Detect H₂S and other sulphur compounds using optional FPD or PFPD detectors to protect equipment, catalysts, and downstream processes.
Petrochemical and Refinery Laboratories: Support routine quality control, troubleshooting, and advanced gas characterization with fast and repeatable GC analysis.
Hydrogen Stream Analysis: Monitor hydrogen purity and composition in refinery hydrogen networks and processing units.
